Description
RF ANTI THEFT SYSTEM
Rf anti theft system offered by TES Brand is a 8.2 mhz EAS System works as alarm system in case of theft attempt by anyone. Strong and full proof system. When installed in any showroom , shop, mall or warehouse, repays for the its purchase cost in less time. This system is very effective for clothes, shoes, medicines, food item, jewellery etc. TES brands best RF anti theft system in India with in less budget.
System Information
An lc circuit is a resonant circuit or tuned circuit that consists of an inductor, represented by the letter l, and a capacitor, represented by the letter c that has a resonance

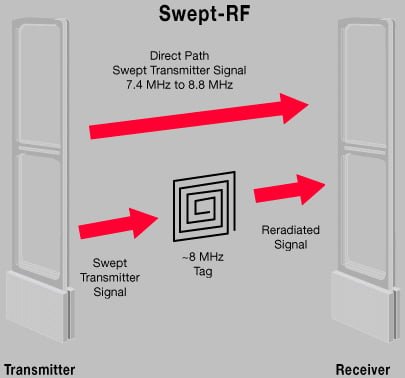

In physics, resonance is the tendency of a system to oscillate at larger amplitude at some frequencies than at others. These are known as system’s resonant frequencies . At these frequencies, even small periodic driving forces can produce large amplitude vibrations. When the system peak anywhere from 1.75 mhz to 9.5 mhz. The most popular frequency is 8.2 mhz. when Sensing is achieved by sweeping around the resonant frequency and detecting the dip. The Deactivation for 8.2 mhz label tags is achieved by detuning the circuit by partially destroying the capacitor.
A capacitor or condenser is a passive electronic component consisting of a pair of conductors separated by a dielectric. When a voltage potential difference exists between the conductors, an electric field is present in the dielectric. This field stores energy and produces a mechanical force. This is done by submitting the tag to a strong electromagnetic.
Rf anti theft system specifications
Product size : 1660×333×80mm
Material: luxury stainless steel tube and abs plastic (anti-shock spring available), steel base
Frequency: 8.2mhz±0.05mhz
Scanning frequency: 180±1mhz
Detecting range: 1.0~1.6m (depend on the target label or tag adopted)
Electronic board: zb001 board
Detection area: more than 95 percent
Power: ≤15 w
Electrical source: ac(50~60hz)220v~245v
Installation type: base type, line slot, embedded tube
Description:
1. Microprocessor control.
2. Automatic processing of dynamic regulation program (agc).
3. The use of advanced digital signal processing chip technology.
4. Digital super scanning electron systems.
5. Systematic destruction of durable resistance.
Main advantages:
1. It adopts automatic gain control (agc) technology, with improved sensitivity to reduce false alarms;
2. 95% detection rates;
3. Elegant design, concise shape together with soft color;
4. Economical and durable;
5. Very professional and popular in use in fashionable super store and supermarket.
Application places:
Supermarket, super mall, retail store, shoes store, clothes store, sports shop, hat shop, glasses store, jewelry store, pharmacy, cosmetic store, etc.
